Product Description
Product Description
Shipping & Returns
Shipping & Returns

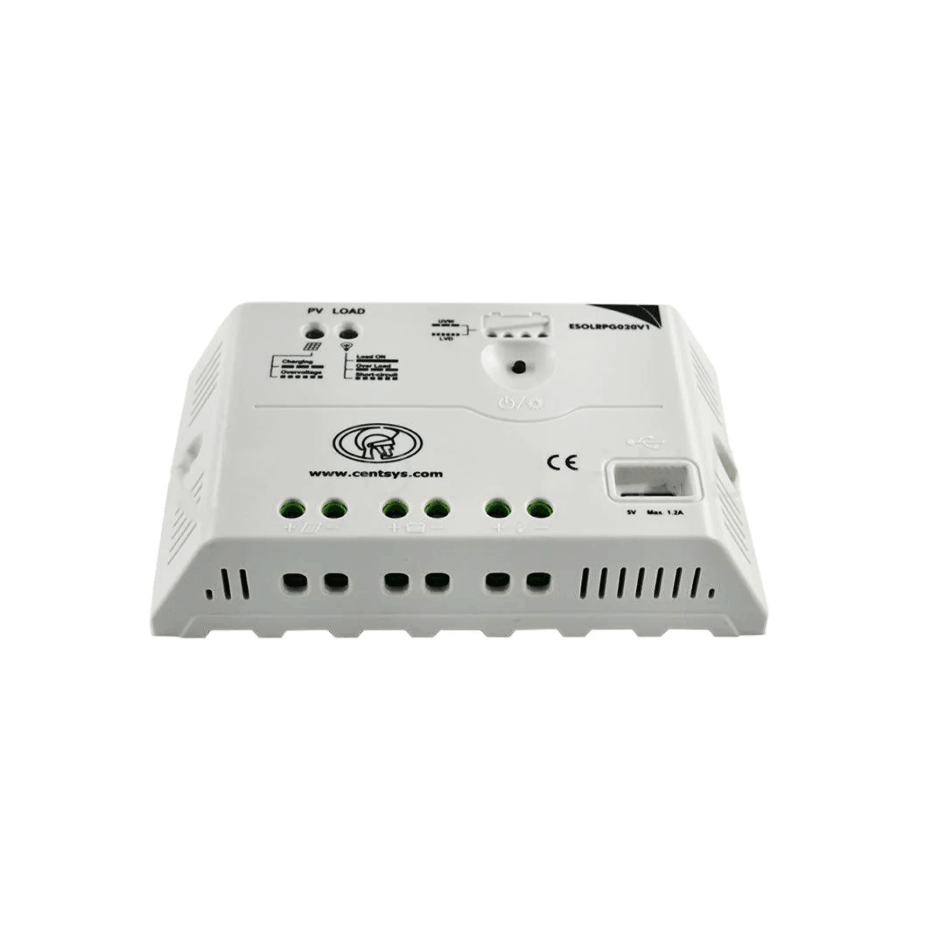

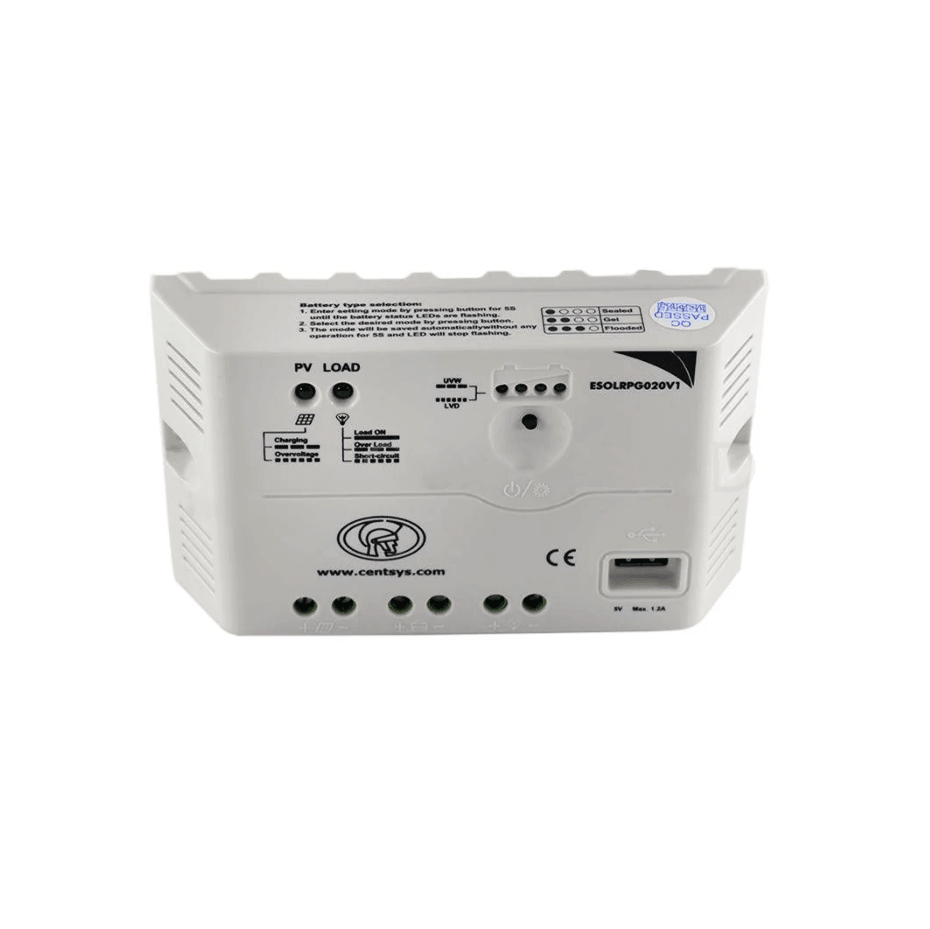

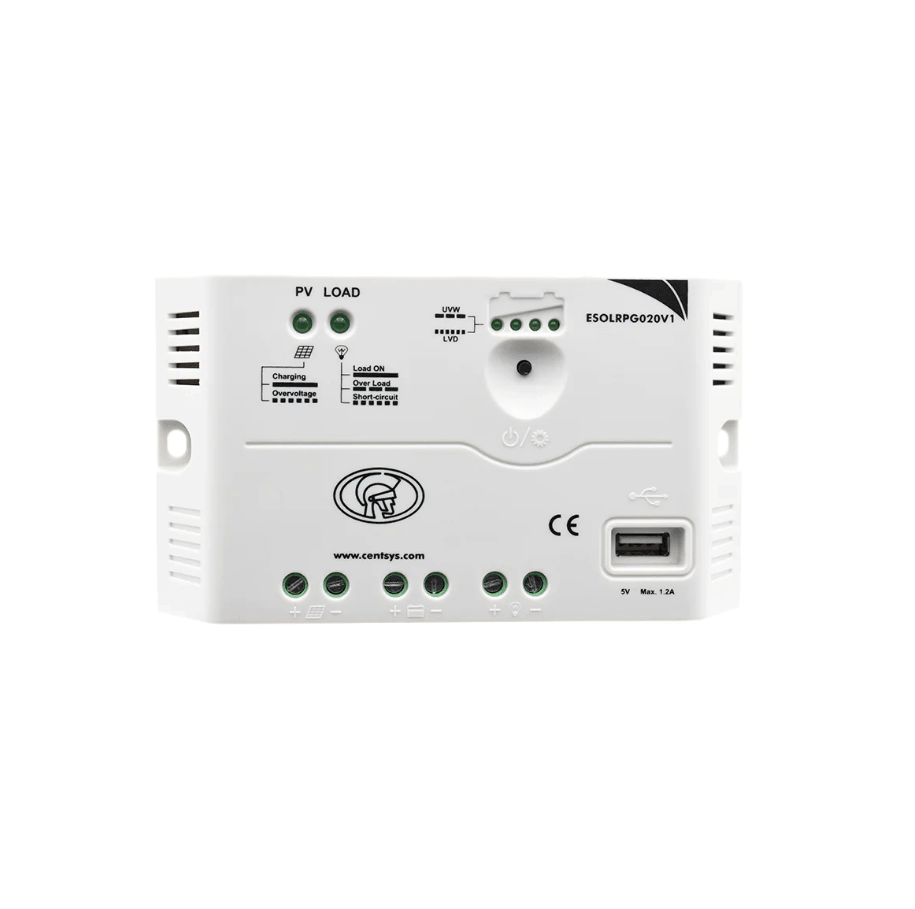

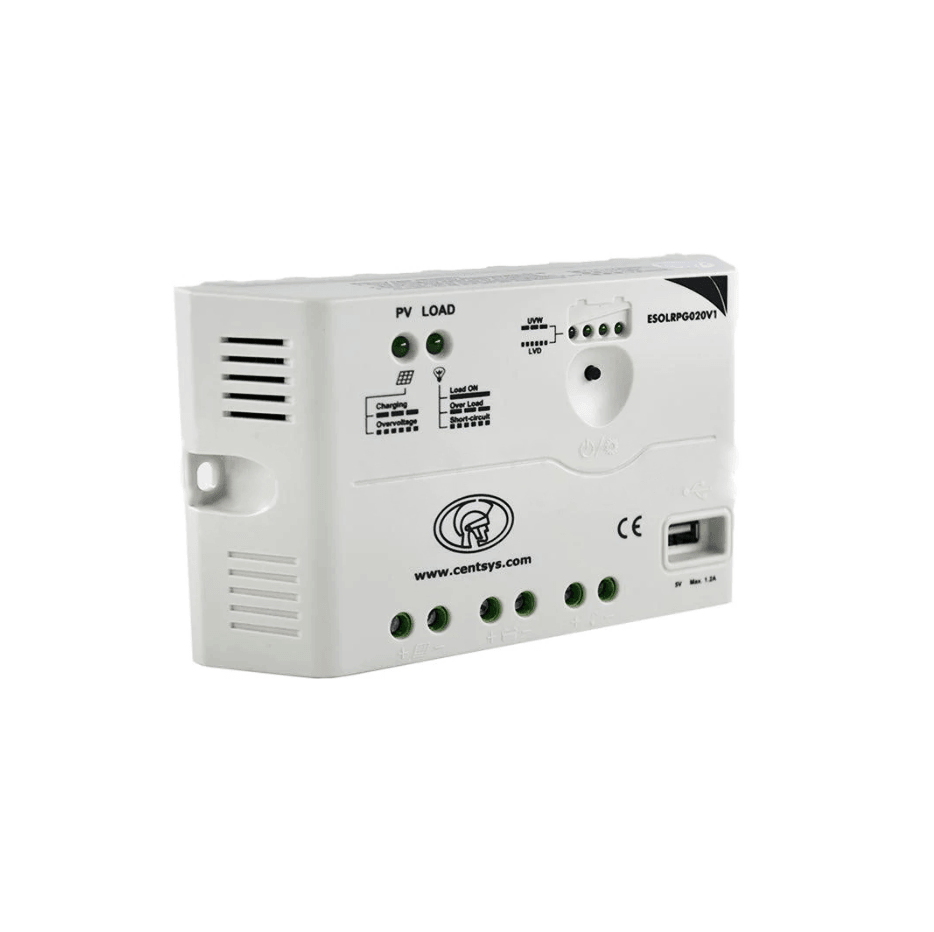

CENTURION 12V/24V 20A SOLAR REGULATOR
The CENTURION 12V/24V 20A Solar Regulator is a member of the ESOLRPG020V0 series of solar charge controllers, offering an economical, practical, and user-friendly design with a visually appealing aesthetic.
FEATURES:
- Battery voltage is measured intuitively thanks to the built-in battery indicator,
- Highly efficient series PWM charging increases battery life-span and makes for optimum performance of the system,
- The system uses an electronic switch - no bulky mechanical switches which are easily damaged,
- LED lights display battery voltage state,
- Automatic correction of charging and discharging parameters extends battery life,
- Reliable protection against overcharging, over discharging, overload and short-circuit,
- Reverse protection for battery,
- USB port provides 5V DC for onsite charging of various electronic devices
SPECS:
| Nominal system voltage | 12 / 24VDC |
| Maximum battery voltage to the unit | 32V |
| Rated battery current | 20A |
| Charge circuit voltage drop | ≤0.26V |
| Discharge circuit voltage drop | ≤0.15V |
| Self-consumption | ≤6mA |
| Temperature compensation coefficient (TEMPCO) | -5mV / °C / 2V (ref) |
| Working temperature | -35°C ~+55°C |
| Storage temperature | -35°C ~+80°C |
| Humidity | ≤95% N.C. |
| Enclosure | IP30 |
| Product dimensions | 148mm x 85.6mm x 34.8mm |
| Mounting dimension | 138mm |
| Mounting hole size | Φ4.5 |
| Terminal | 4mm² |
| Product weight | 103g |
| Packaging dimensions | 165mm x 105mm x 50mm |
| Mass of unit packed | 0.25Kg |
