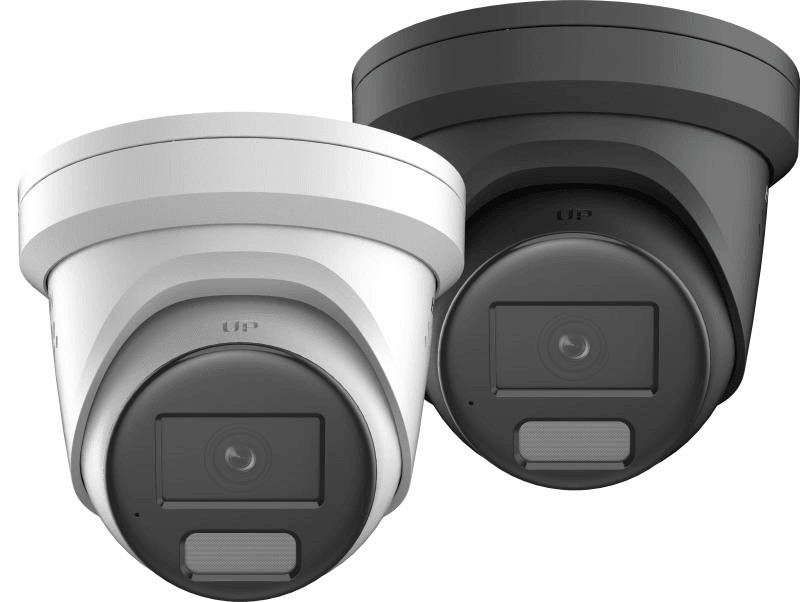

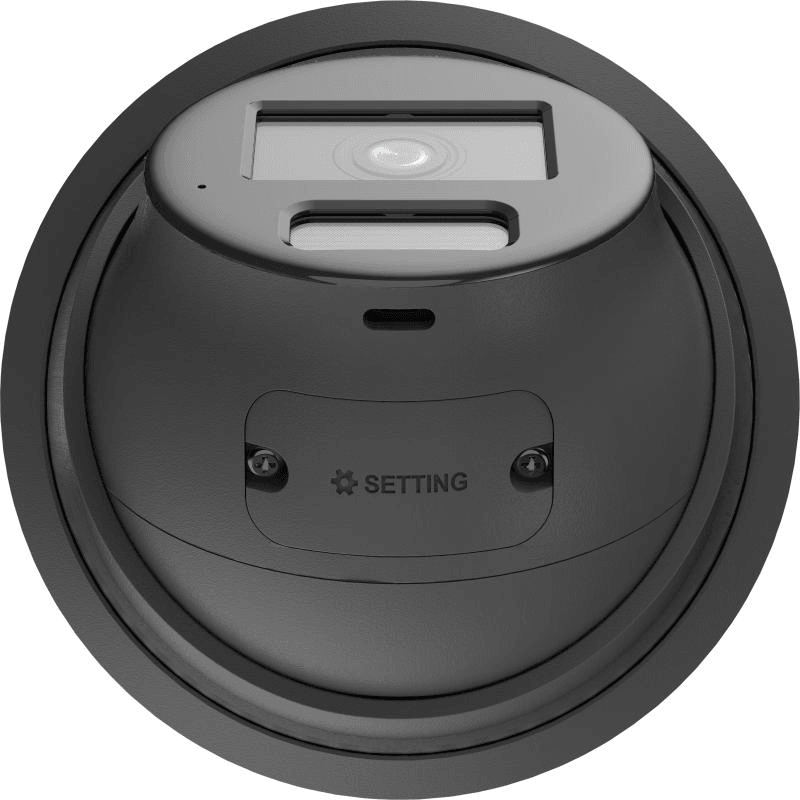

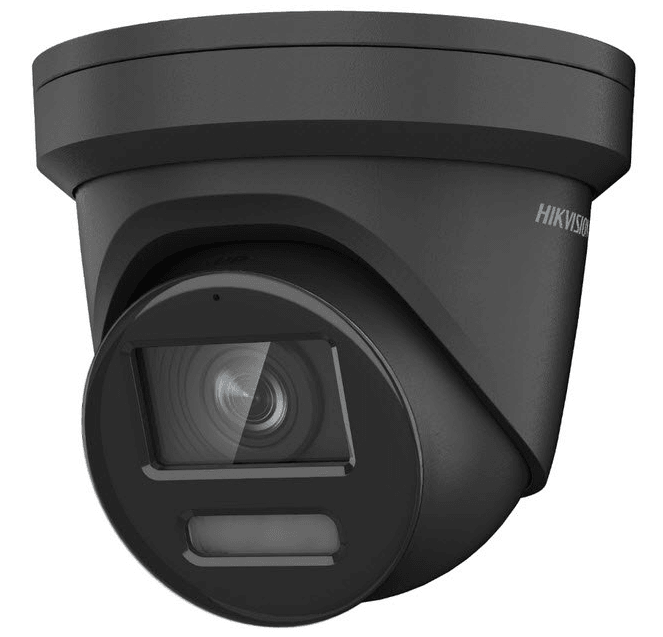

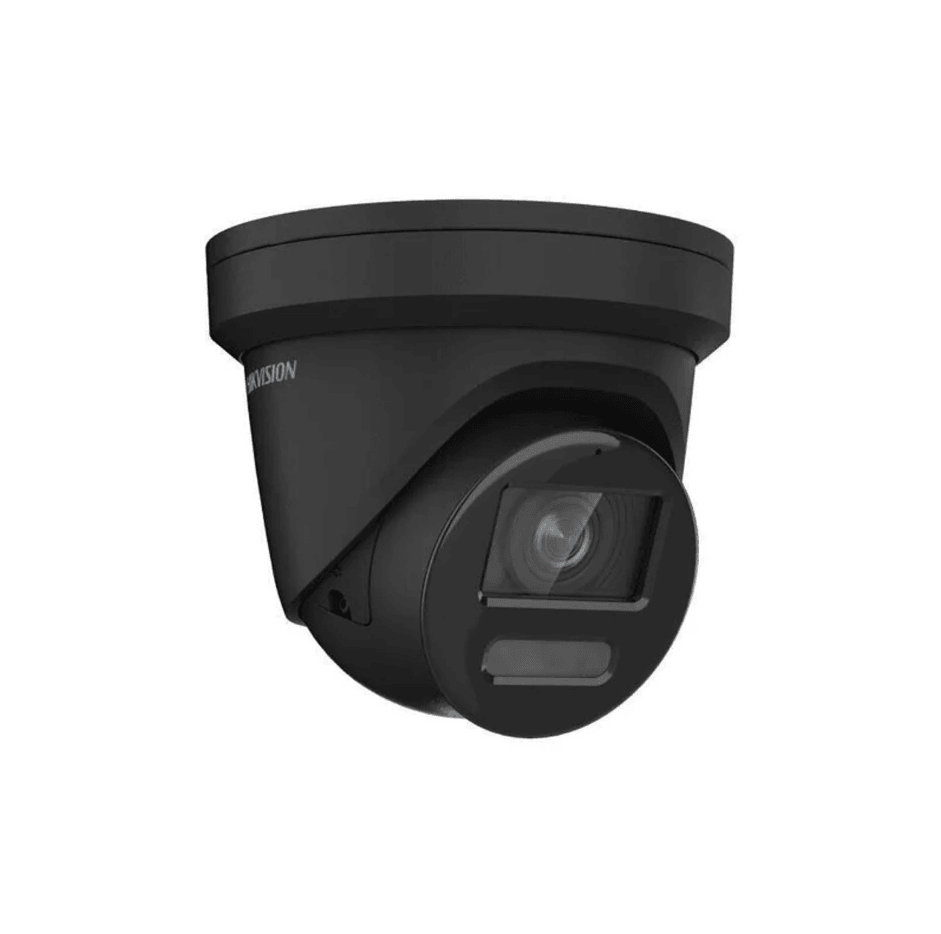

HIK 4MP COLORVU DOME 2.8MM DS-2CD2347G2-LSU/SL - B

DS-2CD2347G2-LSU/SL/2.8mm/C/BLACK

Experience 24/7 vivid, colorful images with Hikvision's ColorVu technology. Our advanced lenses with F1.0 super-aperture collect more light to produce brighter, high-quality images. With improved sensor technology, you can make the most out of available light.

 - PLEASE NOTE THAT PICTURES ARE FOR ILLUSTRATION USE ONLY.

FEATURES:

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor
1/1.8' Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°

4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm: 3.1 m to ∞

4 mm: 5.4 m to ∞

DORI
DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator
Supplement Light Type
White light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
MainStream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression
Mainstream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bitrate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.265 and H.264 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bitrate
64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
Yes
Built-In Speaker
1.2 W, 10 cm: 95 dB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm
Visual alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection

Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

Dimension
Ø138.3 mm × 115.4 mm (Ø5.4' × 4.5')
Package Dimension
170 mm × 170 mm × 150 mm (6.7' × 6.7' × 5.9')
Weight
Approx. 760 g (1.7 lb.)
With Package Weight
Approx. 1040 g (2.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC VoC: ICES-003: Issue 6, 2016;

KC: KN 32: 2015, KN 35: 2015

Safety
UL: UL 60950-1;

CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

LOA: IEC/EN 60950-1

Environment
CE-RoHS: 2011/65/EU;

WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013
